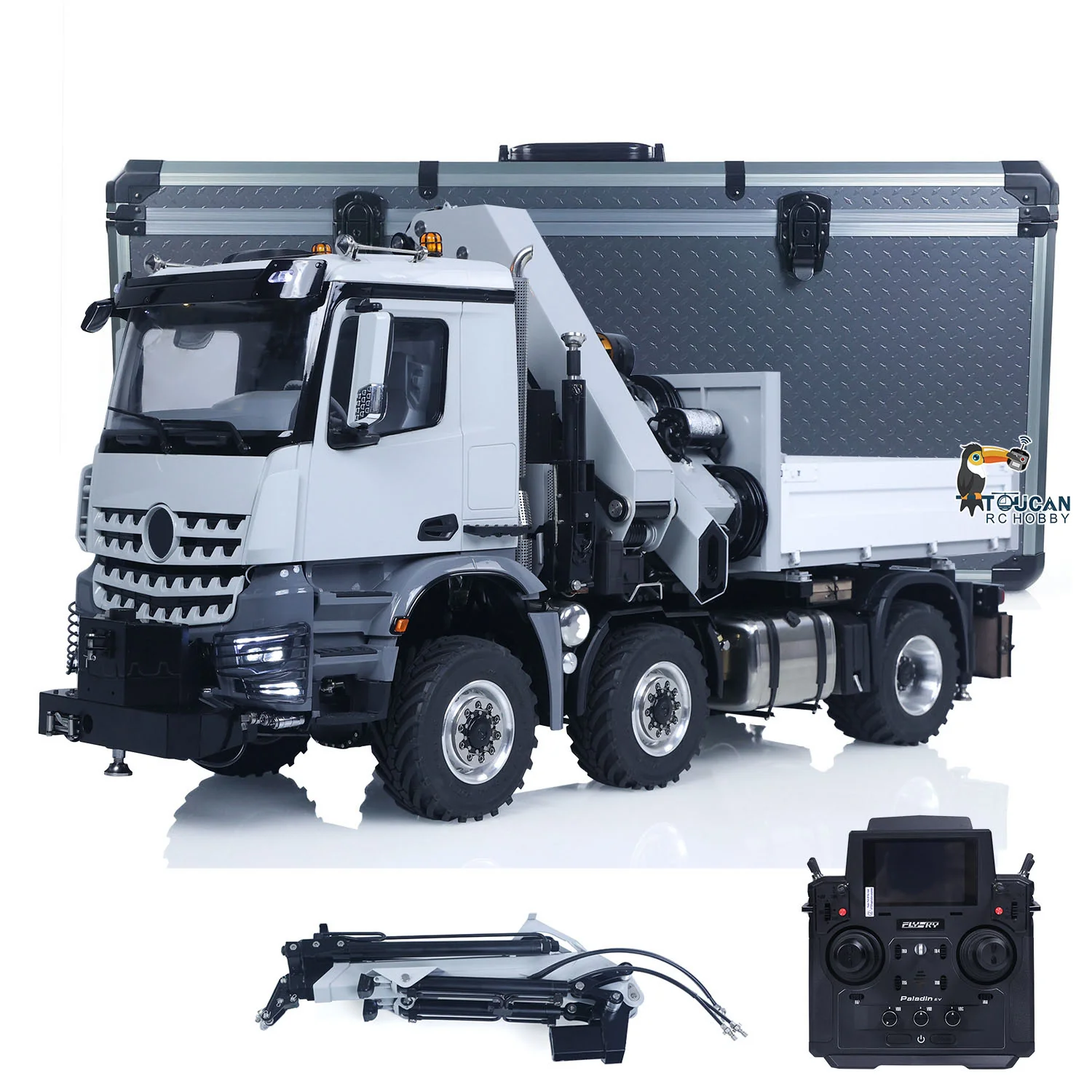

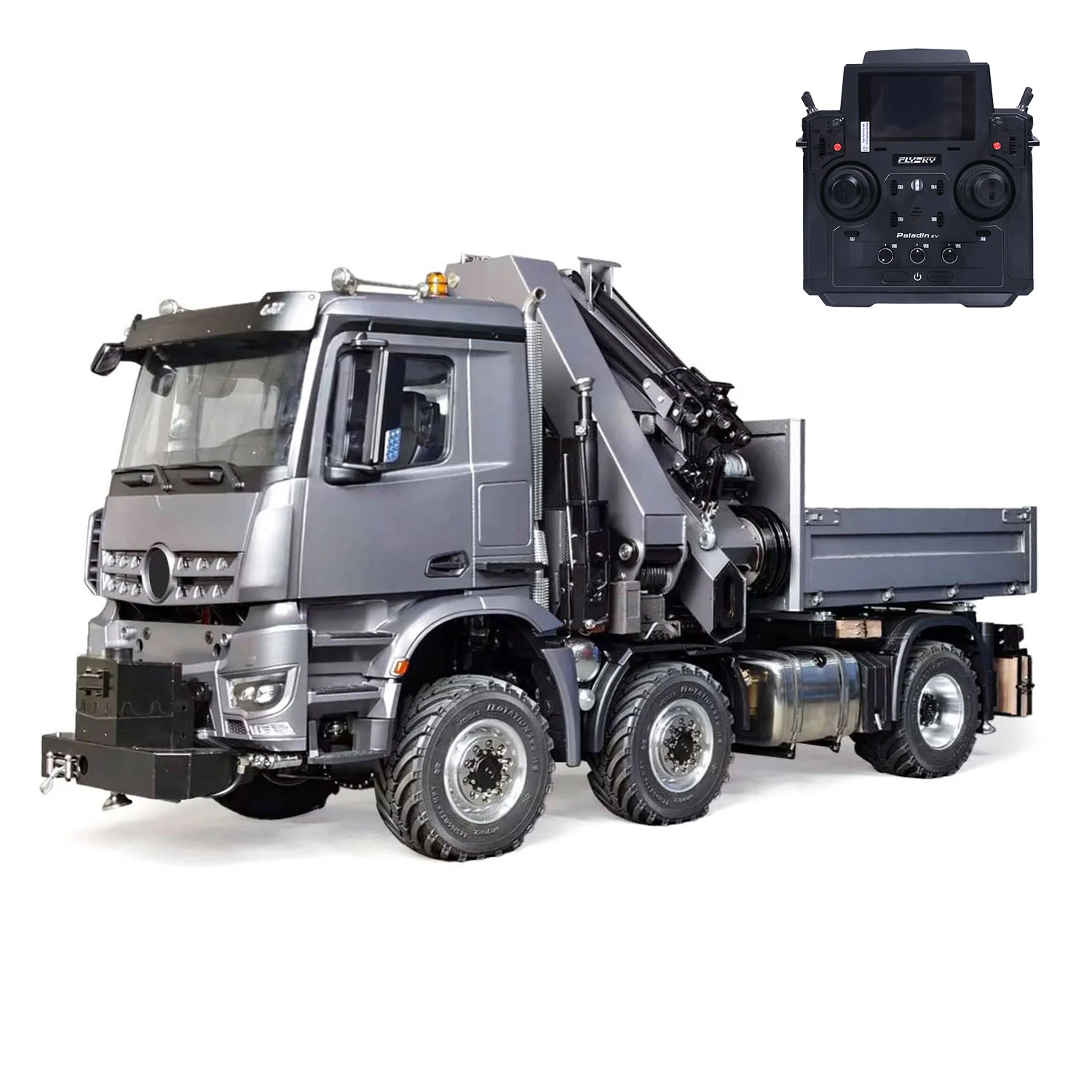

#3363 Metal 1/14 2.4GHz Remote Control Tractor Truck Hydraulic Crane Fly Jib Arm 4151 AK 6*6 RC Agriculture Lorry Paladin PL18EV

#Specification:
Condition: New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Vehicle Size: About 650x210x320mm
Net Weight: About 16KG
Gearbox: Full Metal 3Speed Gearbox
Drive ESC: Hobbywing 1080/80A ESC
Axle: Full Metal 6*6 Axles comes with Differential Lock
Transmitter: Flysky PL18EV Transmitter
Recommended Battery: 3S 5000/5200mah Lipo Battery, XT60 Plug, 140*45*30mm (Not Included)
ID: TH-X-BZ-66-4151AK-TractorTruck-Crane-PNP-GY

#We have different color to choose, the package option is selected by yourself.

#The Package Includes:
1/14 6x6 Tractor Truck Model
Metal Bucket
Metal Hydraulic Crane with Fly Jib Arm
Motor
Servo
ESC
Light System
Sound System
Hydraulic System
Remote Controller and Double Receiver
Accessories Bag
Sticker

#The Package Does Not Include:
Hydraulic Oil
Battery
Charger

#Parameter:
Maximum lifting capacity with main boom unextended: 3kg
Maximum lifting capacity with main boom fully extended: 1kg
Maximum lifting capacity with main boom and fly jib arm fully extended: 250g
Transmission ratio: 1st gear 1/113; 2nd gear 1/86.4; 3rd gear 1/62.1
Valve: 9-channel reversing valve
Working oil pressure: 4.5MPA
Recommended Hydraulic oil: Hydraulic oil No. 46

#Notice:
1.The lamp housings for the model's crane, flying arm, and support legs are simulated decorative parts and do not contain light bulbs.

#Features:
1.9-way all-steel directional control valve, paired with a micro oil pump machined from 45 steel and 2mm plastic hydraulic piping, enables precise control and operation.

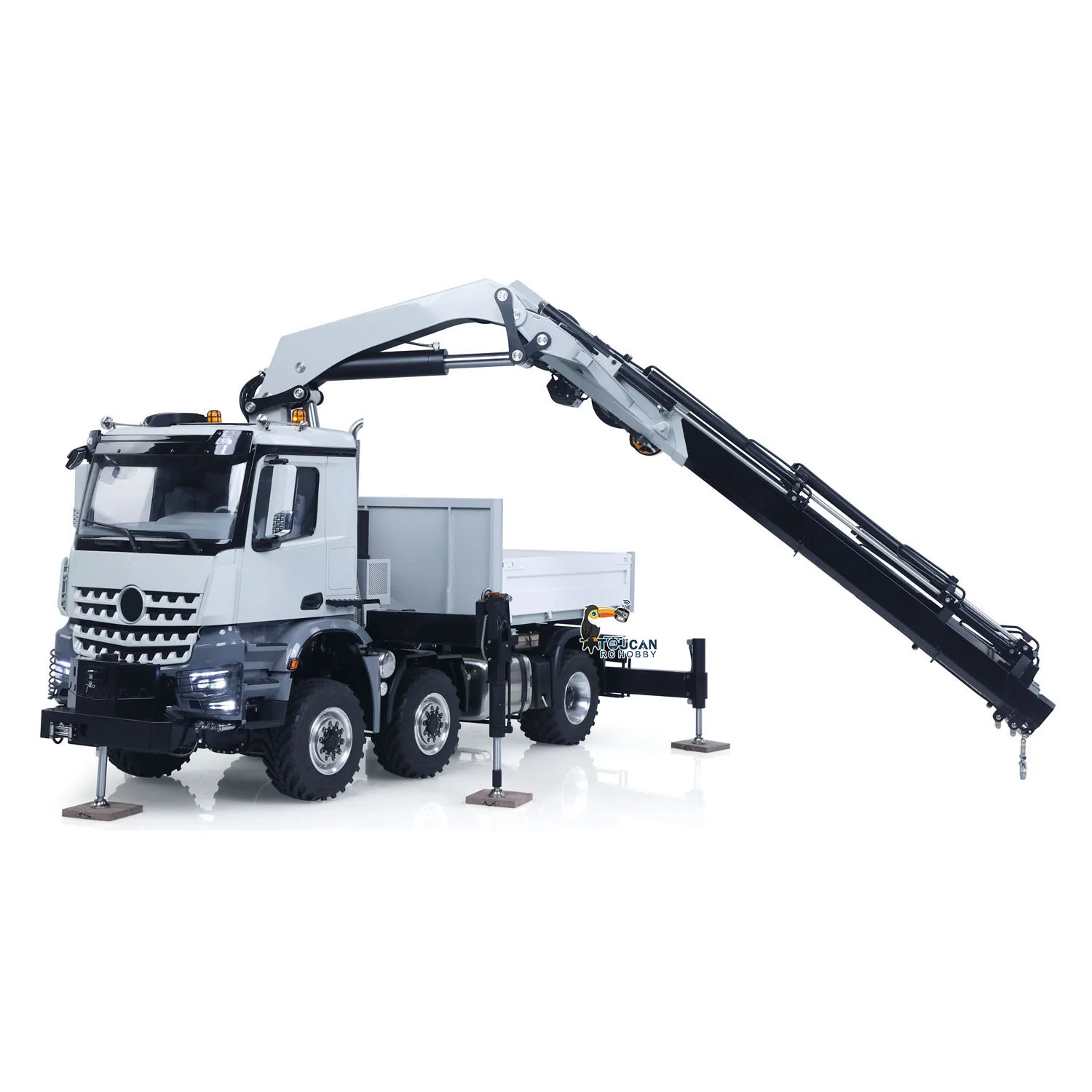

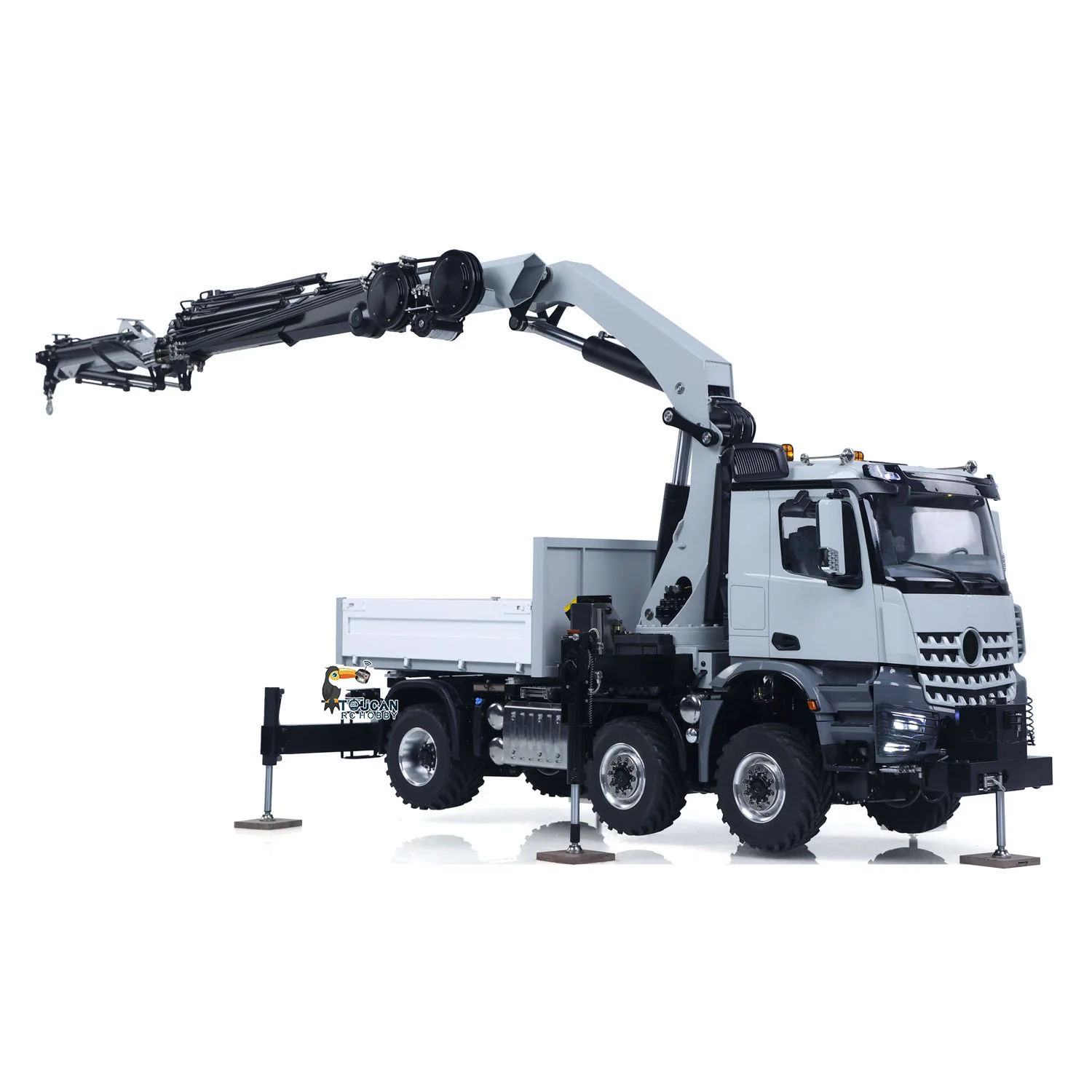

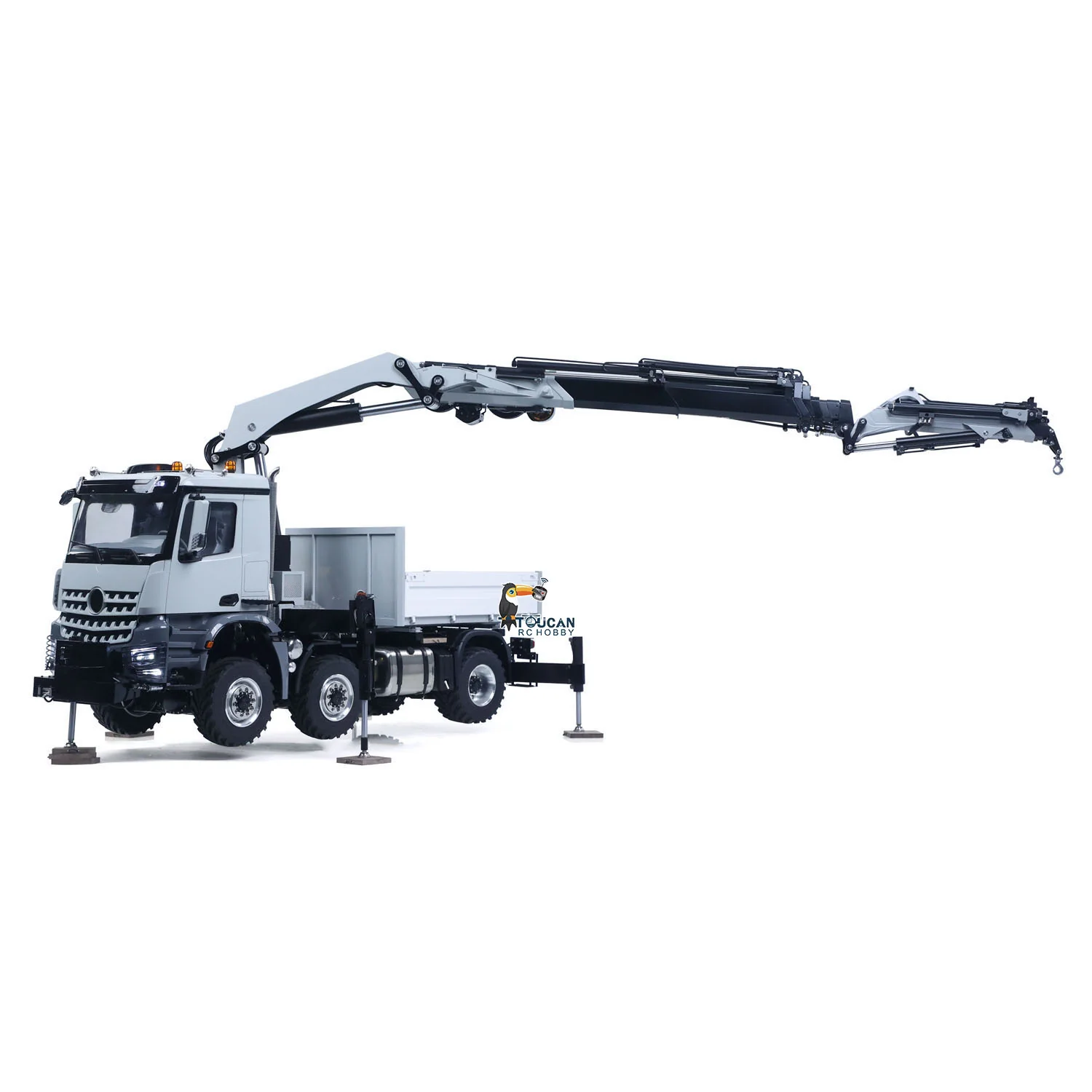

2.The crane features a 6-section telescopic boom structure, capable of 360-degree unlimited rotation. Standard version equipped with fly jib and is upgradable for aerial work. Equipped with a metal electric winch and hook for lifting and towing. Note: All lighting fixtures on this crane are purely decorative simulations; they contain no LED bulbs and do not illuminate.
3.Industry-first synchronous hydraulic hose reel system allows simultaneous boom extension/retraction and hose feeding/retrieving. The remote features a hose reel compensation button for independent hose reel control, enabling fine adjustments.
4.Five simulated hydraulic support legs are installed. To enhance passability, the front legs are designed shorter, mimicking real vehicles. Wooden blocks must be placed under the extended front legs during operation.
5.Two hydraulic expansion ports are reserved: one set on the left (front/rear) and one set on the right (front/rear). Front and rear ports within the same set cannot be used simultaneously.
6.Metal chassis with 3-speed transmission, 6¡Á6 wheel reduction axles, and a central differential. The all-metal axles include differential locks. The front and front-middle axles feature a tilting steering design to enhance traction and stability.
7.Front quick-release guardrail, combined with a metal electric winch and front hook, simulates engineering rescue and adapts to various towing scenarios.
8.Metal low-sided bucket with three openable sides, easily installed on or removed from the metal chassis. The chassis-mounted fifth wheel coupling accommodates different buckets and trailers, expanding application scenarios.
9.The vehicle has two magnetic mounting points at the front and rear: One front point supplies power to the front winch; one rear point is dedicated to upgrading to the "FuryBear" tail lights (sold separately).
10.Simulated "FuryBear" sound & light system with flowing water turn signals and two roof warning rotating lights. Four-mode cycling lighting system and simulated engine sound module enhance the operating experience.
